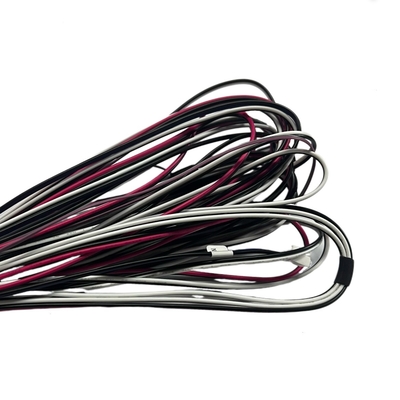

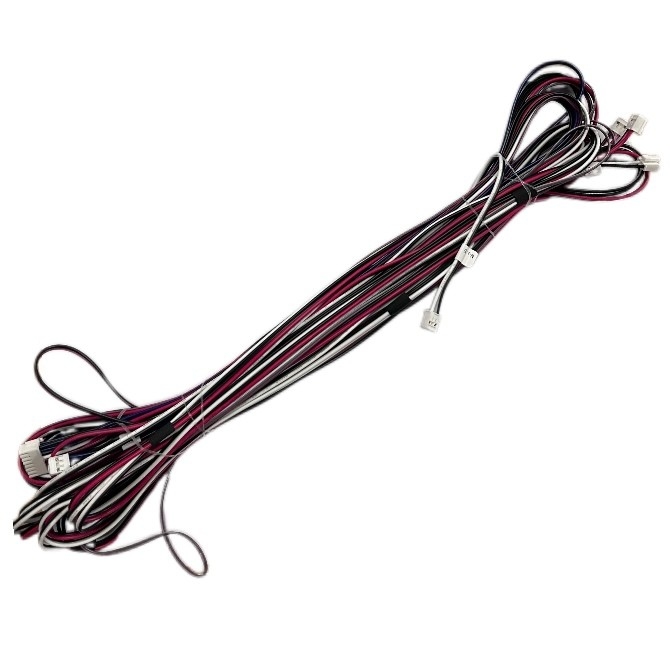

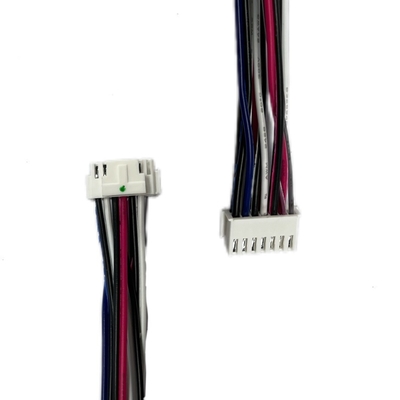

Integrated Easy Installation Lvds Cable Assembly Small Electronic Wire

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	5000
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Material:

Wires, Plastic Housings, Terminals, Acetate Cloth, Heat-shrinkable Tubes

Color:

Black, White, Red

Test:

100% Open/short Circuit Test.

Application Situation:

Drone, TV, Home Appliance

Customization Availability:

Customizable

Flexibility:

Good

Impedance Characteristics:

The Conduction Resistance Is 3 Ohms (maximum), And The Insulation Resistance Is 5 Megohms (minimum).

Packaging Details:

Packed in cartons

Highlight:

Integrated Lvds Cable Assembly

Integrated Small Electronic Wire

Small Electronic Wire Easy Installation

Product Description

Speaker Cable for Drone, TV, Home Appliance, Display device, Automotive, Office supplies, Industrial, Medical, Aerospace, Environment, LSV

Product name	Speaker Cable
Material	Wires, plastic housings, terminals, acetate cloth, heat-shrinkable tubes
Dimension	/
Color	Black, White, Red
Test	100% open/short circuit test. The test voltage is 300V DC. The conduction resistance is 3 ohms (maximum), and the insulation resistance is 5 megohms (minimum).
Application situation	TV, Home Appliance, Display device, Office supplies, Industrial, Drone, Medical, Aerospace, Environment, Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Ultra-Pure Conductive Systems

Engineered with 99.99% OFC (Oxygen-Free Copper) purity and nano-crystalline grain refinement, achieving 15% lower resistivity than conventional cabling .

Dynamic Shielding Architecture

Integrated aluminum-polymer composite foil with 90% coverage density, combined with braided copper shielding.

Environmental Resilience

• Operational range: -55°C to +125°C (MIL-STD-810G)

• Passes 1,000-hour salt spray test (ASTM B117)

• Withstands 1,000,000+ flex cycles at 180° bends (IEC 60228)

Ultra-Low Capacitance

Cross-linked polyethylene dielectric achieves 36.5pF/m capacitance (20kHz), reducing RC time constant by 40% compared to PVC-insulated alternatives . Optimized impedance matching (50Ω±1%) ensures <0.3dB insertion loss at 20GHz.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
