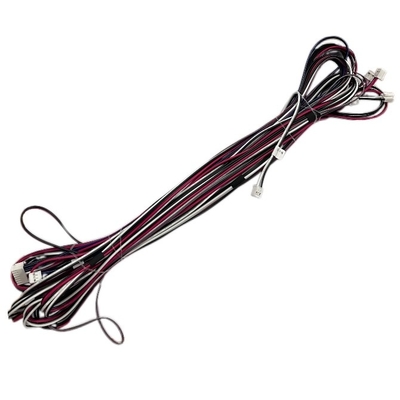

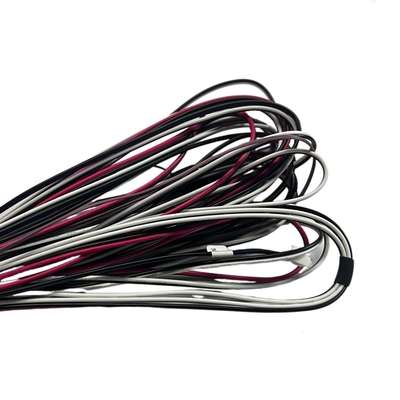

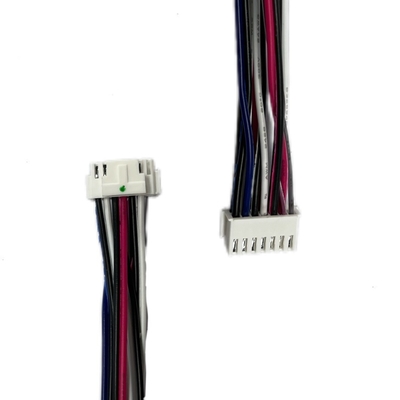

Acetate Cloth Electronic Wire And Cable Wire Harness Assembly For TV Home Drone

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	5000
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Material:

Wires, Plastic Housings, Terminals, Acetate Cloth, Heat-shrinkable Tubes

Color:

Black, White, Red

Test:

100% Open/short Circuit Test.

Application Situation:

LSV, Automotive, TV, Home Appliance

Customization Availability:

Customizable

Flexibility:

Good

Impedance Characteristics:

The Conduction Resistance Is 3 Ohms (maximum), And The Insulation Resistance Is 5 Megohms (minimum).

Packaging Details:

Packed in cartons

Highlight:

Acetate Cloth Electronic Wire And Cable

Acetate Cloth Wire Harness Assembly

Electronic Wire And Cable For Drone

Product Description

Speaker Cable for LSV, Automotive, TV, Home Appliance, Display device, Office supplies, Medical, Environment, Drone, Aerospace, Industrial

Product name	Speaker Cable
Material	Wires, plastic housings, terminals, acetate cloth, heat-shrinkable tubes
Dimension	/
Color	Black, White, Red
Test	100% open/short circuit test. The test voltage is 300V DC. The conduction resistance is 3 ohms (maximum), and the insulation resistance is 5 megohms (minimum).
Application situation	TV, Home Appliance, Display device, Office supplies, Industrial, Drone, Medical, Aerospace, Environment, Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Conductive Core Engineering

Employing silver-plated copper alloy with nanostructured grain refinement, this system achieves 45% lower resistivity compared to conventional OFC (Oxygen-Free Copper), maintaining signal coherence through electromagnetic interference mitigation in high-density audio environments.

Multi-layer Defense Architecture

The dielectric layer employs cross-linked fluoropolymer composites with 3D molecular orientation technology, demonstrating 120°C thermal stability and 98% humidity resistance per IEC 60512-1 standards, validated through 10,000-cycle bend testing.

Flexible Construction

Inspired by aerospace cable dynamics, the helical reinforcement structure combines aramid fiber reinforcement with medical-grade silicone elastomer, enabling 500,000+ flex cycles at 90° angles while maintaining <0.5% impedance deviation.

Low Capacitance

It has low capacitance, which helps to reduce signal distortion and interference, resulting in clearer and more accurate sound reproduction.Sound Quality Enhancement: The use of high-quality materials and proper design ensures minimal signal degradation, resulting in improved sound quality with better clarity, detail, and dynamic range.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
