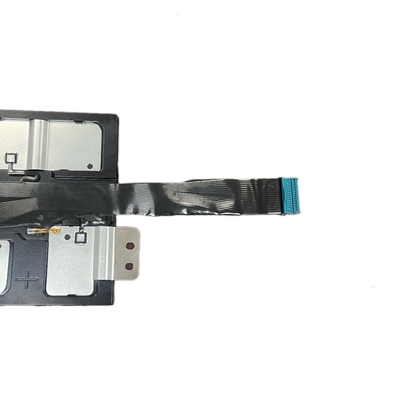

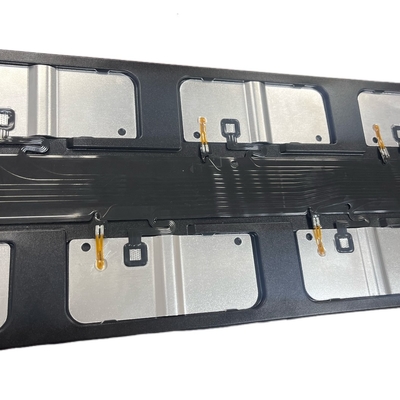

1p13s Automated Battery Cell Contacting System Cell Connection System

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	100
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Material:

FDC + Conductive Aluminum Busbar + Blister Heat Riveting Or PET Film Heat Pressing

Dimension:

174mm * 950mm

Test:

Passed 100% Short Circuit And Open Circuit Testing

Application Situation:

New Energy Batteries, Industrial

Conductor Type:

Customization Availability:

Customizable

Impedance Characteristics:

The Design Of The Acquisition Signal Is 0.5A

Packaging Method:

Packed In Cartons

Packaging Details:

Packed in cartons

Highlight:

1p13s Battery Cell Contacting System

1p13s Cell Connection System

Automated Battery Cell Contacting System

Product Description

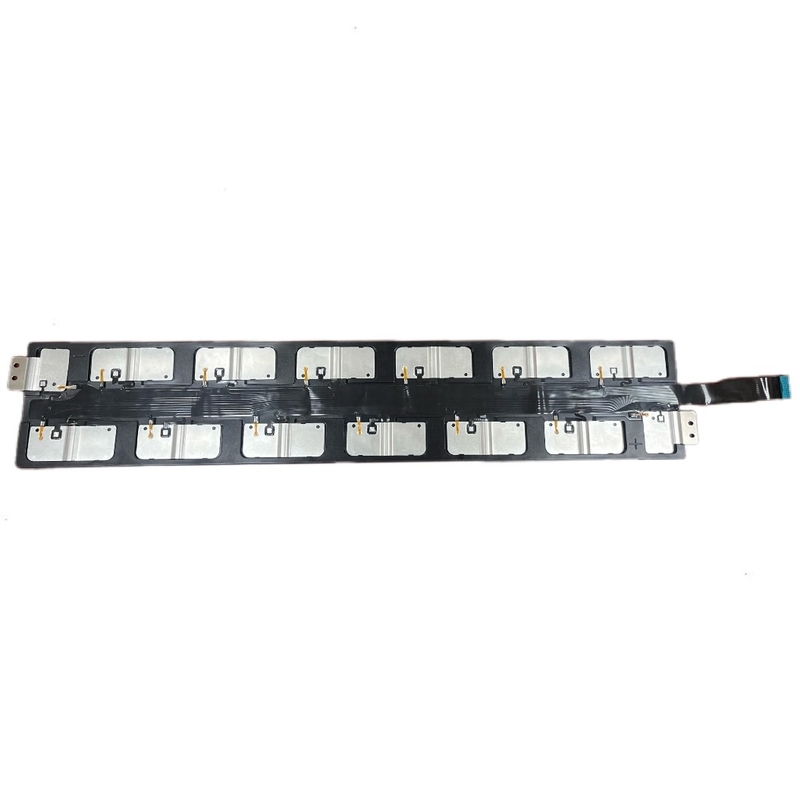

1p13s FDC-CCS for Industrial, New energy batteries, Automotive, LSV

Product Name	FDC-CCS
Material	FDC + Conductive aluminum busbar + Blister heat riveting or PET film heat pressing
dimension	174mm * 950mm
Product parameters	The design of the acquisition signal is 0.5A The fuse is designed to be 3A for 1 second The internal resistance of the circuit is less than 1 ohm
Conductor	Cu. Plated with Ni and Au.
Application situation	New energy batteries (power batteries, energy storage batteries), Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Innovative Structure

It adopts an ultra - lightweight design, featuring high strength and excellent insulation performance. It can ensure safety and stable operation in complex environments.

Stable Transmission and Efficient Acquisition

The signal transmission is stable. The voltage and temperature acquisition are realized through an integrated FPC, with high integration and efficient and accurate acquisition.

Advanced Manufacturing Process

It has a high degree of automation, with precise and efficient production and stable quality. The FDC die - cutting process has fewer steps and takes less time compared with the FPC etching process, reducing costs by about 30%. It is suitable for mass production, and the manufacturing process is environmentally friendly. Moreover, the SMT process is eliminated, further simplifying the process and reducing costs.

High - quality Material Selection

Aluminum is used as the conductor, which has good electrical conductivity and low cost. The insulator is PET, which has stable physical and chemical properties, provides reliable protection, and extends the product's service life.

Wide Application

It is suitable for battery pack electrical systems and CCS module integration. It is an ideal cost - reduction solution for FPC, offering high cost - effectiveness.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
