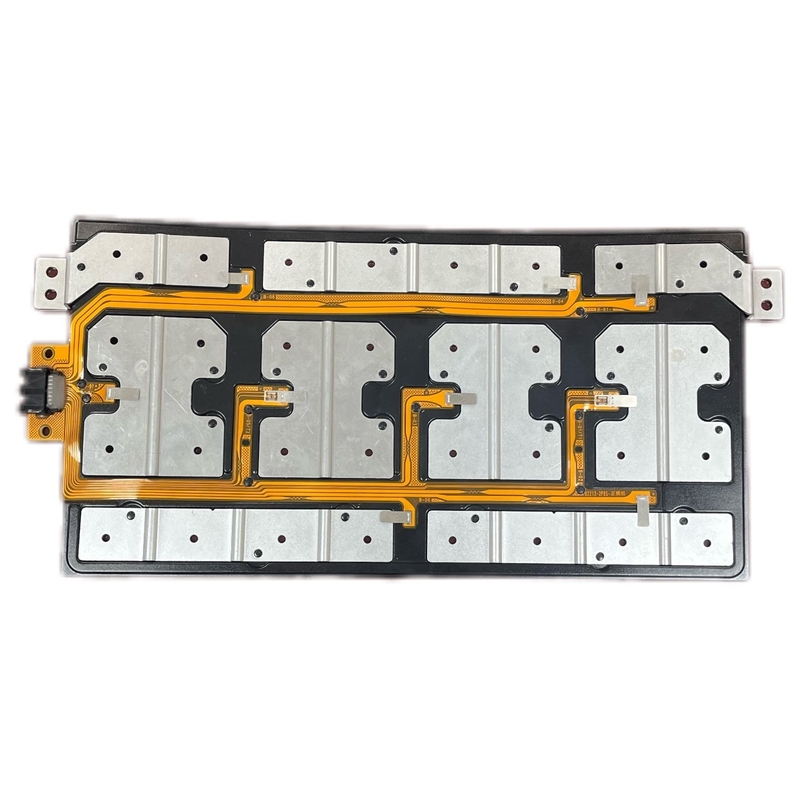

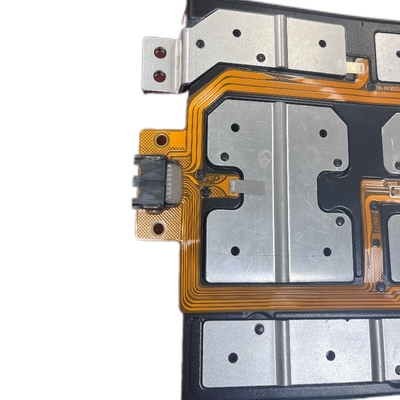

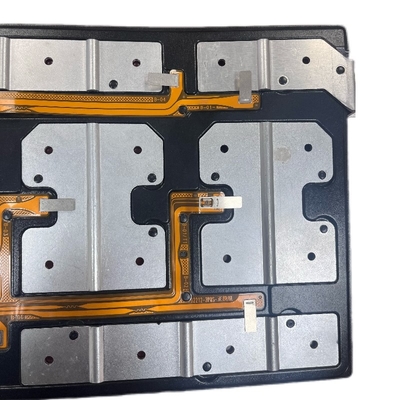

2p8s FPC Battery Cell Contacting System ISO14004 For New Energy Batteries

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	100
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Material:

FDC + Conductive Aluminum Busbar + Blister Heat Riveting Or PET Film Heat Pressing

Dimension:

180mm *350mm

Test:

Passed 100% Short Circuit And Open Circuit Testing

Application Situation:

New Energy Batteries, Automotive, LSV

Customization Availability:

Customizable

Impedance Characteristics:

The Internal Resistance Of The Circuit Is Less Than 1 Ohm

Packaging Method:

Packed In Cartons

Packaging Details:

Packed in cartons

Highlight:

ISO14004 Battery Cell Contacting System

ISO14004 cell contact system

2p8s Battery Cell Contacting System

Product Description

2p8s FPC-CCS for new energy batteries for New energy batteries, Automotive, LSV

Product Name	FPC-CCS
Material	FDC + Conductive aluminum busbar + Blister heat riveting or PET film heat pressing
dimension	180mm *350mm
Product parameters	The design of the acquisition signal is 0.5A The fuse is designed to be 3A for 1 second The internal resistance of the circuit is less than 1 ohm
Application situation	New energy batteries (power batteries, energy storage batteries), Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Innovative Structure

It adopts an ultra-lightweight structure, boasting excellent overall strength and outstanding insulation performance. It can operate stably and safely in complex environments.

Transmission and Acquisition

The signal transmission is stable and reliable. The voltage and temperature acquisition are achieved through an integrally designed FPC, featuring high integration, accurate and efficient acquisition.

Production Process

It has a high degree of automation. The production process is precise and efficient, and the product quality is stable and controllable. However, due to the application of advanced technologies and high-quality materials, the relative cost is relatively high.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
