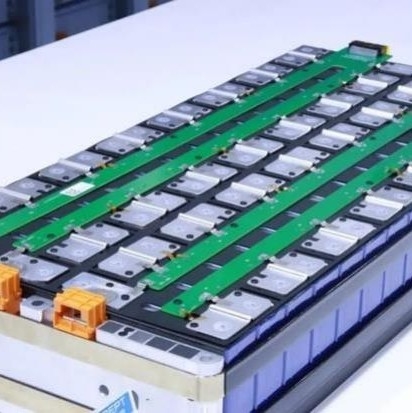

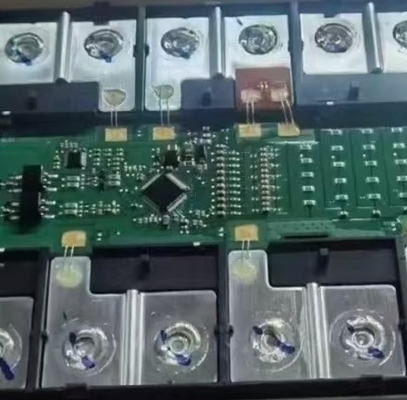

PCB LSV Battery Cell Contacting System With High Integration Packed In Cartons

PCB LSV Battery Cell Contacting System With High Integration Packed In Cartons

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	100
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Material:

PCB + Nickel Sheet + Conductive Aluminum Busbar + Blister Hot Riveting Or PET Film Hot Pressing

Test:

Passed 100% Short Circuit And Open Circuit Testing

Application Situation:

New Energy Batteries, Automotive, LSV

Customization Availability:

Customizable

Impedance Characteristics:

The Internal Resistance Of The Circuit Is Less Than 0.8 Ohms

Packaging Method:

Packed In Cartons

Packaging Details:

Packed in cartons

Highlight:

LSV Battery Cell Contacting System

High Integration Battery Cell Contacting System

LSV cell connection system

Product Description

PCB-CCS for new energy batteries, Automotive, LSV

Product name	PCB-CCS
Material	PCB + nickel sheet + conductive aluminum busbar + blister hot riveting or PET film hot pressing
Dimension	/
Product parameters	Designed for a collection signal of 0.8A With a fuse designed for 5A for 3 seconds The internal resistance of the circuit is less than 0.8 ohms
Application situation	New energy batteries (power batteries, energy storage batteries), Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Structural Design

Adopting a lightweight structure, it is convenient to carry, has relatively high strength and good insulation performance. It can operate stably in complex environments and avoid the risk of electric leakage.

Signal Performance

It has excellent signal collection capabilities, with stable and reliable output. The integrated FPC is used to collect voltage and temperature, with high integration, improving the collection accuracy and efficiency.

Production Process

It mainly relies on meticulous manual operations and strictly controls the production process. From the selection of raw materials to the production debugging, it ensures the product quality, endowing the product with unique quality and market differentiation advantages.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
