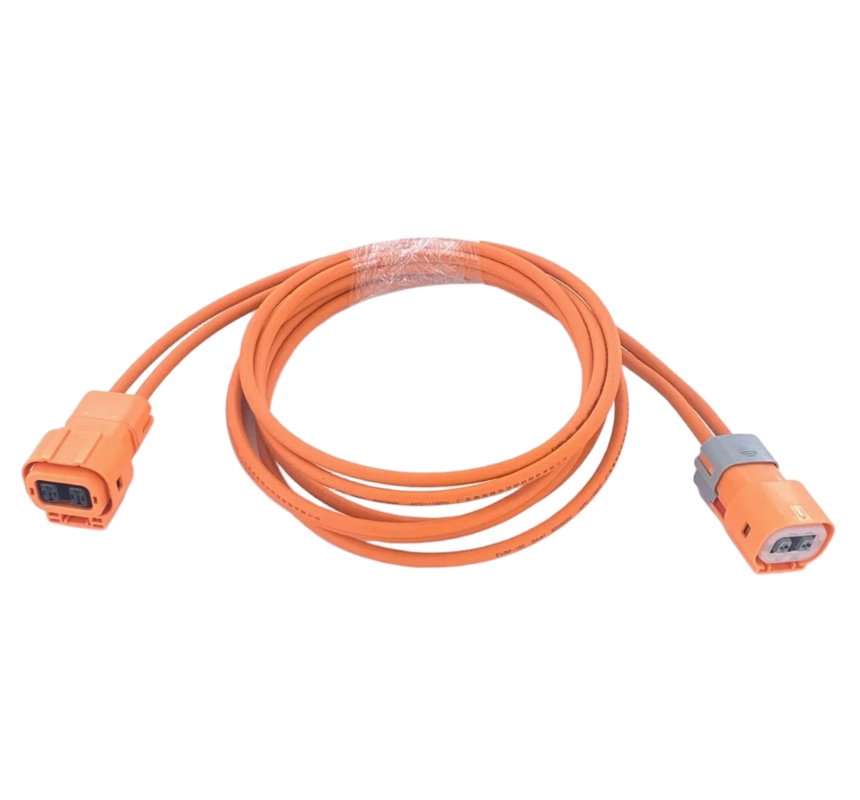

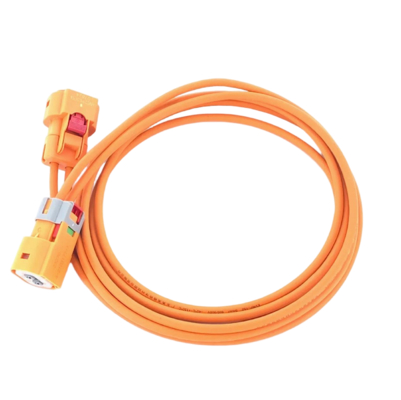

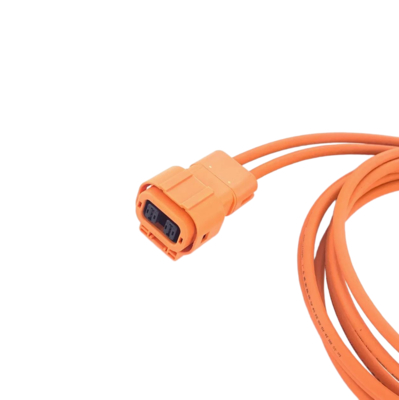

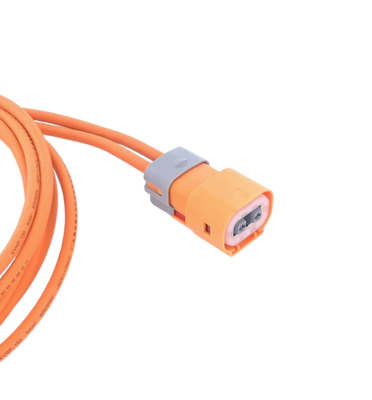

Orange LSV Cables for EV/HV Applications 600V AC 900V DC

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	100
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Bandaging Materials:

Corrugated Pipe

Conductor Material:

Copper

Rating Voltage:

AC 600V/DC 900V

Shape:

Round

Color:

Orange

Application Situation:

New Energy Batteries, Automotive, LSV

Packaging Method:

Packed In Cartons

Packaging Details:

Packed in cartons

Highlight:

Orange LSV cables for EV

600V AC LSV cables

900V DC HV cables

Product Description

Custom EV/Hv LSV Cables Orange Cables for Conduction Mechanical and Temperature Tests

Dimension	/
Color	Orange
Test	Conduction test, insulation resistance test, mechanical strength test (tensile/bend), temperature rise test, salt spray test

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

High-Efficiency Power Transmission

Engineered with oxygen-free copper conductors (99.9% purity) and precision-machined terminals, this harness minimizes resistive losses and ensures stable, low-resistance current transmission even at high currents. Advanced crimping technology guarantees firm connections, reducing energy waste and heat generation during long-term operation.

Extreme Environment Resilience

Designed for harsh conditions in energy storage systems, it withstands:

Wide temperature range: -40°C to +125°C (short-term peaks up to +150°C)
High humidity (95% RH) and dust/water ingress (IP67/IP68 rated, optional)

Industrial-Grade Durability

Constructed with:

Reinforced XLPO insulation, resistant to aging, ozone, and chemical corrosion (salt/mud exposure).
High-tensile XLPO jacket, enhancing tensile strength and abrasion resistance.
Locking terminal designs (e.g., color-coded, screw-lock) to prevent disconnection under vibration.
