Customizable Automotive Wire Harness 0.75mm² to 2.5mm² Copper Core

Brand Name:	BAORI
Model Number:	BAORI wireharness
MOQ:	100
Price:	It depends on the requirements
Payment Terms:	T/T
Supply Ability:	50K per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Cable Specifications:

3 Cores × 0.75mm², 1.0mm², 1.5mm², 2.5mm² Cross-sectional Area (customizable)

Rated Voltage:

1000V DC

Current Carrying Capacity:

60A/100A/120A

Insulation Material:

Polystyrene (heat-resistant, Aging-resistant)

Sheath Material:

PVC

Shape:

Round

Material:

Connector, Terminal, Shielded Wire

Flexibility:

Good

Conductor Material:

Copper

Packaging Details:

Packed in cartons

Highlight:

customizable automotive wire harness

automotive wire harness copper core

0.75mm² to 2.5mm² wire harness

Product Description

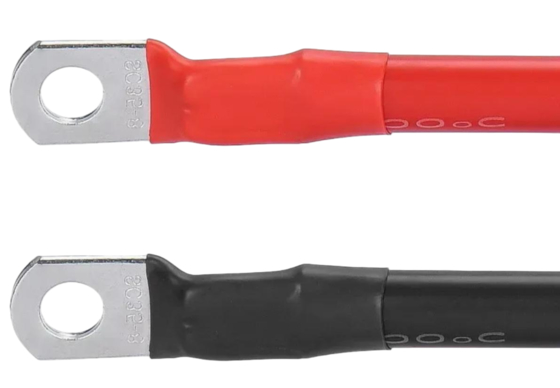

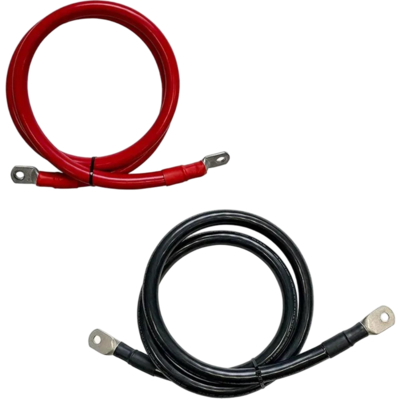

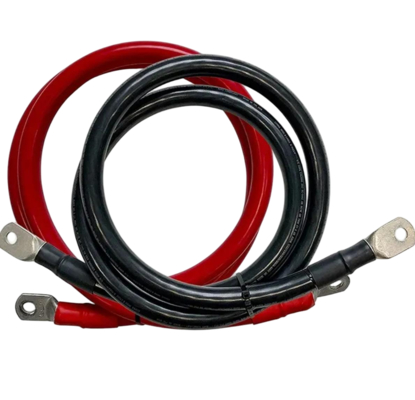

Red and Black Automotive Wire Harness with 100% Inspection and Customizable Cable Specification

Product Specifications

Cable Specifications	3 cores × 0.75mm², 1.0mm², 1.5mm², 2.5mm² cross-sectional area (customizable)
Rated Voltage	1000V DC
Current Carrying Capacity	60A/100A/120A
Insulation Material	Polystyrene (heat-resistant, aging-resistant)
Sheath Material	PVC
Shape	Round
Material	Connector, Terminal, Shielded wire
Flexibility	Good
Conductor Material	Copper

Product Details

We manufacture high-quality automotive wire harnesses with customizable cable specifications and 100% quality inspection.

Cable Specification	30.75mm, 31.0mm, 31.5mm, 32.5mm (Customizable)
Color	Red, Black
Testing	100% electrical and power performance tests, 100% inspection before dispatch

We can design and manufacture high-quality cables for your products based on your drawings, pictures, or specifications.

Product Highlights

Multi-Certification Compliance

UL/CSA/CCC/CE/RoHS/ISO9001 full-chain certifications, meeting global market access standards
Passed UL1581/VW-1 flame retardant testing for enhanced safety

Ultra-High Performance Design

High Current-Carrying Capacity: Supports 60A-120A current ratings with low-resistance optimization to minimize energy loss
Wide Temperature Adaptability: -40°C to +125°C (short-term peak +150°C), resistant to salt spray, ozone, and corrosion
Flexible Customization: 3-core wire diameters from 0.75mm² to 2.5mm²; supports Deutsch, NEMA, JAE, Molex, AMP connectors, and more

Full-Scenario Coverage

Dedicated to high-voltage applications like energy storage systems (ESS), solar inverters, EV chargers, and industrial equipment
IP67/IP68 sealed versions available for dustproof/waterproof protection (1m submersion for 30 minutes)
